Recombinant Protein Development

Chondrex, Inc. would like to introduce a streamlined workflow protocol using high-quality molecular biology reagents and chromatography resins for recombinant protein expression and purification. This protocol highlights the primary core reagents required for each key step of the workflow. Researchers are responsible for providing target protein-specific components, including gene-specific primers, appropriate expression hosts, culture media, lysis and purification buffers, and primary detection antibodies, as these requirements vary depending on the protein of interest and the experimental design.

Molecular Biology Reagents

	Product	Catalog #	Price (USD)
	1Kb Plus DNA Ladder RTU	BDM015-R500	94.00
	Agarose Tablets	BAGT002-0500	122.00
	PCR Clean-Up & Gel Extraction Kit	BPDC01-0100	156.00
	Plasmid miniPREP Kit	BPDP01-0100	156.00
	Taq DNA Polymerase	BMB101-0500	63.00

Protein Purification Reagents

	Product	Catalog #	Price (USD)
	CM Sepharose Column, 5 ml	9080	55.00
	DEAE Sepharose Column, 5 ml	9079	55.00
	Nickel-IMAC Column, 5 ml	9078	67.00
	Protein A Agarose Column, 1 ml	9076	101.00
	Protein G Sepharose Column, 1 ml	9077	101.00
	Q Sepharose Column, 5 ml	9081	55.00

Protein Characterization Reagents

	Product	Catalog #	Price (USD)
	ChonBlock Western Blot Buffer 1 (PBS)	9069P	119.00
	ChonBlock Western Blot Buffer 1 (TBS)	9069T	119.00
	ChonBlock Western Blot Buffer 2 for Goat (PBS)	90691P	67.00
	ChonBlock Western Blot Buffer 2 for Goat (TBS)	90691T	67.00
	ChonBlock Western Blot Buffer 2 for Rabbit (PBS)	90692P	67.00
	ChonBlock Western Blot Buffer 2 for Rabbit (TBS)	90692T	67.00
	NEXT13 Prestained Protein Ladder	BPMX13-0500	131.00
	UltraScence PVDF Membrane Sandwiches	BMMP01-S020	181.00

WORKFLOW: RECOMBINANT PROTEIN PRODUCTION

STEP 1: Constructing a Vector with the Desired DNA Insert, Cloning, and Verifying the Vector

Prepare and verify the expression vector containing the gene encoding the target recombinant protein. The recombinant construct should include either a polyhistidine (His) tag or an Fc tag fused to the N- or C-terminus of the protein to support subsequent purification and analytical procedures.

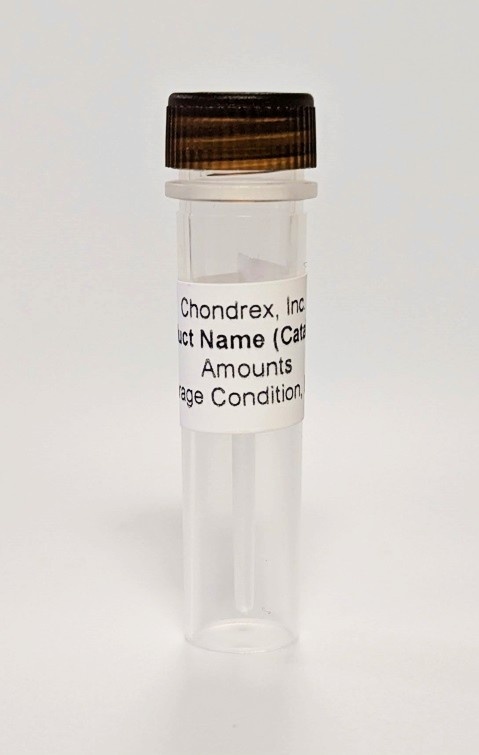

1.1   Target DNA Amplification: Desired primers and cDNA templates are mixed directly into a PCR master mix featuring Taq DNA Polymerase (Cat # BMB101-0500). This highly heat-stable enzyme amplifies the target insert region across routine thermal cycles.

1.2    Verify DNA with Gel Electrophoresis: Successful target DNA Amplification is verified by agarose gel electrophoresis. Agarose Tablets (Cat # BAGT002-0500) are dissolved directly in electrophoresis buffer to prepare clear, consistent agarose gels without the need to handle loose agarose powder. DNA fragments are analyzed alongside the DNA Ladder, 1 Kb Plus (Cat # BDM015-R500), whose high-intensity 1 kb and 3 kb reference bands provide convenient size markers for confirming the expected vector and insert fragments.

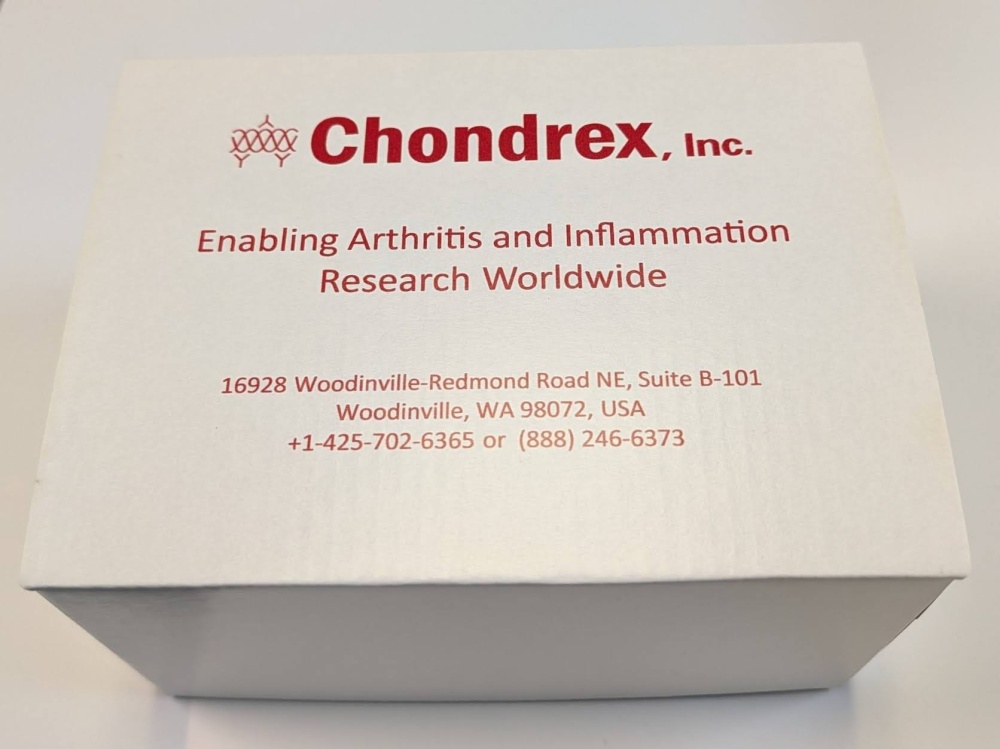

1.3   Amplicon Clean-Up: To remove residual primers, dNTPs, and polymerases prior to sequencing verification or downstream archiving, positive PCR products or restriction fragments can be rapidly cleaned using the PCR Clean-Up & Gel Extraction Kit (Cat # BPDC01-0100).

1.4   Restriction Digestion and Cloning: Digest the purified PCR product and the destination vector using the appropriate restriction enzymes. Ligate the compatible DNA fragments to generate the final recombinant expression plasmid for subsequent transformation.

1.5   Transformation and Selection: The recombinant expression plasmid is introduced into competent E. coli cells by transformation. Transformed cells are then plated on selective agar medium containing the appropriate antibiotic to enable the growth and isolation of positive transformants.


STEP 2: Colony Screening and Target Amplification

Following transformation, individual E. coli colonies are screened to identify clones carrying the correct recombinant expression plasmid prior to expansion for recombinant protein production.

2.1 Colony PCR Screening: Individual bacterial colonies are sampled and mixed directly into a PCR master mix containing Taq DNA Polymerase (Cat # BMB101-0500). This thermostable enzyme rapidly amplifies the target insert directly from bacterial colonies, enabling rapid screening for the presence of the gene of interest.

2.2 Plasmid Isolation: Positive E. coli colonies are cultured, and plasmid DNA is isolated using the Plasmid miniPREP Kit (Cat # BPDP01-0100). This kit employs alkaline lysis followed by glass fiber spin-column purification, allowing plasmid DNA to bind selectively while cellular proteins, RNA, genomic DNA, and other contaminants are efficiently removed during the wash steps. Purified plasmid DNA is then eluted for downstream verification.

2.3 Restriction Digest Confirmation: Purified plasmid DNA is subjected to diagnostic restriction enzyme digestion to verify the presence, orientation, and expected size of the inserted gene. The resulting DNA fragments are analyzed by agarose gel electrophoresis to confirm successful plasmid construction before proceeding with protein expression studies.


STEP 3: Recombinant Protein Purification

Following successful expression and induction of the verified clone, bacterial cells are harvested and lysed to release the recombinant target protein. At this stage, the workflow transitions from molecular biology-based procedures to downstream protein biochemistry and purification techniques.

3.1 Primary Affinity Capture: For His-tagged recombinant proteins, the clarified and filtered cell lysate is applied directly to Nickel-IMAC Column (Cat # 9078). The immobilized nickel ions selectively bind the His-tag with high affinity under either native or denaturing conditions, while most host cell proteins are removed in the flow-through fraction. Following a series of wash steps to eliminate non-specifically bound contaminants, the target protein is eluted using an imidazole gradient. For Fc-fusion proteins, the affinity step is performed using an alternative Fc-binding matrix, such as Protein A Agarose Column (Cat # 9076) or Protein G Sepharose Column (Cat # 9077), enabling highly specific capture of the Fc region with strong binding specificity.

3.2 Additional Purifications: If further purification is required to remove residual contaminants, charge variants, or aggregated species, the partially purified protein may be subject to ion-exchange chromatography. Depending on the protein’s theoretical isoelectric point, either anion-exchange resins such as DEAE Sepharose Column (Cat # 9079) or Q Sepharose Column (Cat # 9081), or cation-exchange resins such as the CM Sepharose Column (Cat # 9080), may be employed to achieve higher purity and improved homogeneity.


STEP 4: Purity & Protein Validation

The final stage of the workflow involves assessing protein purity, integrity, and apparent molecular weight for fractions collected during chromatography.

4.1 SDS-PAGE Analysis: Elution fractions from chromatography are analyzed by SDS-PAGE alongside the Prestained Protein Ladder (Cat # BPMX13-0500). During electrophoresis, the ladder’s multi-color reference bands provide real-time migration tracking and enable accurate estimation of molecular weight across a broad dynamic range, including key reference markers at approximately 15, 25, 80, and 250 kDa. This allows rapid evaluation of target protein purity and approximate size consistency across collected fractions.

4.2 Western Blot Confirmation: To confirm the identity of the target protein, resolved SDS-PAGE samples are transferred onto a PVDF membrane using Precut PVDF Membrane Sandwiches (Cat # BMMP01-S020). The 0.2 µm pre-cut membrane format, combined with pre-aligned filter papers, enables efficient and uniform protein transfer. Transfer efficiency can be immediately assessed by visualizing the prestained ladder bands on the membrane prior to immunodetection, ensuring successful transfer before antibody probing. ChonBlock Western blot buffers increase the signal-to-noise ratio in Western blots more than traditional Western blot buffers (bovine serum albumin, casein, and normal goat serum).
